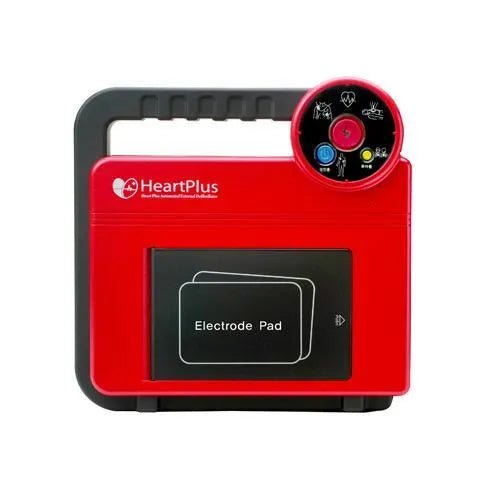

HeartPlus™ NT-180 Defibrillator

HeartPlus NT-180 Defibrillator

The HeartPlus NT-180 Defibrillator is a professional automated external defibrillator (AED) designed to provide fast, reliable, and life-saving emergency cardiac care in hospitals, clinics, ambulances, workplaces, public facilities, and emergency response environments. Engineered with advanced biphasic technology and intelligent voice-guided operation, this portable defibrillator supports both adult and pediatric patients with precise and efficient shock delivery.

Compact, lightweight, and easy to operate, the HeartPlus NT-180 AED helps first responders and medical professionals deliver rapid defibrillation during sudden cardiac arrest emergencies. With built-in self-diagnostics, ECG analysis, CPR guidance, and comprehensive data storage capabilities, this emergency defibrillator device ensures dependable performance and preparedness at all times.

Key Features of HeartPlus NT-180 Defibrillator

Advanced Biphasic Waveform Technology

This biphasic AED defibrillator uses truncated exponential biphasic waveform technology for effective and controlled defibrillation.

Adult and Pediatric Modes

The dual mode defibrillator includes separate power buttons for adult and child operation, delivering:

• Adult Energy: 180J
• Pediatric Energy: 50J

Fast Shock Charge Time

The rapid response defibrillator charges in less than 13 seconds for emergency treatment efficiency.

Intelligent ECG Rhythm Analysis

This ECG monitoring AED automatically analyzes cardiac rhythms to determine shockable conditions such as ventricular fibrillation (VF) and ventricular tachycardia (VT).

Step-by-Step Voice Guidance

The voice guided defibrillator provides clear audio and visual instructions for pad placement, CPR, analysis, and shock delivery.

Benefits of Using HeartPlus NT-180 Defibrillator

Reliable Emergency Cardiac Support

This emergency AED device supports rapid response during sudden cardiac arrest situations.

Easy for First Responders

The automatic external defibrillator guides users through the entire resuscitation process.

Pediatric and Adult Compatibility

The AED with child mode is suitable for patients aged 12 months and older.

Lightweight and Portable Design

The portable cardiac defibrillator weighs only 1.9kg for easy transport and deployment.

Advanced Safety and Self-Diagnostics

The medical emergency defibrillator performs daily self-tests to ensure operational readiness.

Applications of HeartPlus NT-180 Defibrillator

Hospitals and Clinics

Ideal for emergency cardiac care and patient resuscitation.

Ambulances and Emergency Services

Suitable for mobile emergency response environments.

Public Facilities and Workplaces

Useful in schools, offices, malls, airports, and public safety areas.

Sports and Fitness Facilities

Provides rapid emergency cardiac support during sudden incidents.

Technical Specifications

General Specifications

Product Name: HeartPlus NT-180 Defibrillator
Type: Automated external defibrillator portable AED
Waveform: Truncated Exponential Biphasic
Energy Output:

• Adult: 180J
• Pediatric: 50J

Shock Charge Time: Less than 13 seconds
Shock Method: Manual flashing ready button
Mode Conversion: Adult and Child separate power buttons

Physical Specifications

• Dimensions: 7.1cm (H) x 29.3cm (W) x 29.1cm (D)
• Weight: 1.9kg including battery and electrode pads

Environmental Specifications

• Water Resistance: IPX2
• Operating Temperature: 0℃ to 40℃
• Storage Temperature: -20℃ to 60℃
• Humidity: 10% to 95% RH non-condensing
• Altitude: 0 to 2000m
• Drop Test: 1 meter

ECG and CPR Features

ECG Analysis

The HeartPlus AED evaluates shockable rhythms including:

• Ventricular fibrillation (VF)
• Ventricular tachycardia (VT)

CPR Guidance

The CPR instruction defibrillator provides:

• Voice-guided CPR instructions
• Flashing metronome light
• 100 compressions per minute guidance

Data Storage and Connectivity

Stored Data

• ECG recordings
• Shock delivery information
• Ambient noise recordings
• Self-diagnostics history

Memory Capacity

• ECG: 1,000 recordings
• Ambient Noise: 60 minutes total
• Self-Test History: 3,000 events

Connectivity

• USB connection with NT-MPR App for PC access

Electrode Pads Specifications

• Shelf Life: 2 years
• Conductive Gel: Hydrogel
• Cable Length: 2.1m
• Applicable Ages: 12 months and older
• Placement: Anterior-lateral

Battery Specifications

Battery Type: Non-rechargeable lithium (LiMnO2)
Capacity:

• 180 shocks at 25℃
• 130 shocks at 0℃

Voltage: DC 21V
Standby Life: Recommended 5 years

What’s Included

The HeartPlus NT-180 Defibrillator package includes:

• HeartPlus NT-180 Defibrillator
• Battery pack
• Sealed electrode pads
• HeartPlus User Guide
• Protective carrying case
• NT-MPR CD-ROM
• USB cable

Why Choose HeartPlus NT-180 Defibrillator

The HeartPlus NT-180 AED combines advanced cardiac emergency technology with portability and user-friendly operation. Its intelligent rhythm analysis, voice instructions, and pediatric compatibility make it suitable for both professional and public emergency use.

Designed for reliability and safety, this portable emergency defibrillator ensures readiness for critical cardiac emergencies.

Final Thoughts

For dependable and efficient cardiac emergency response, the HeartPlus NT-180 Defibrillator is an outstanding choice. This automated external defibrillator delivers life-saving support with advanced technology, portable convenience, and professional-grade reliability.
